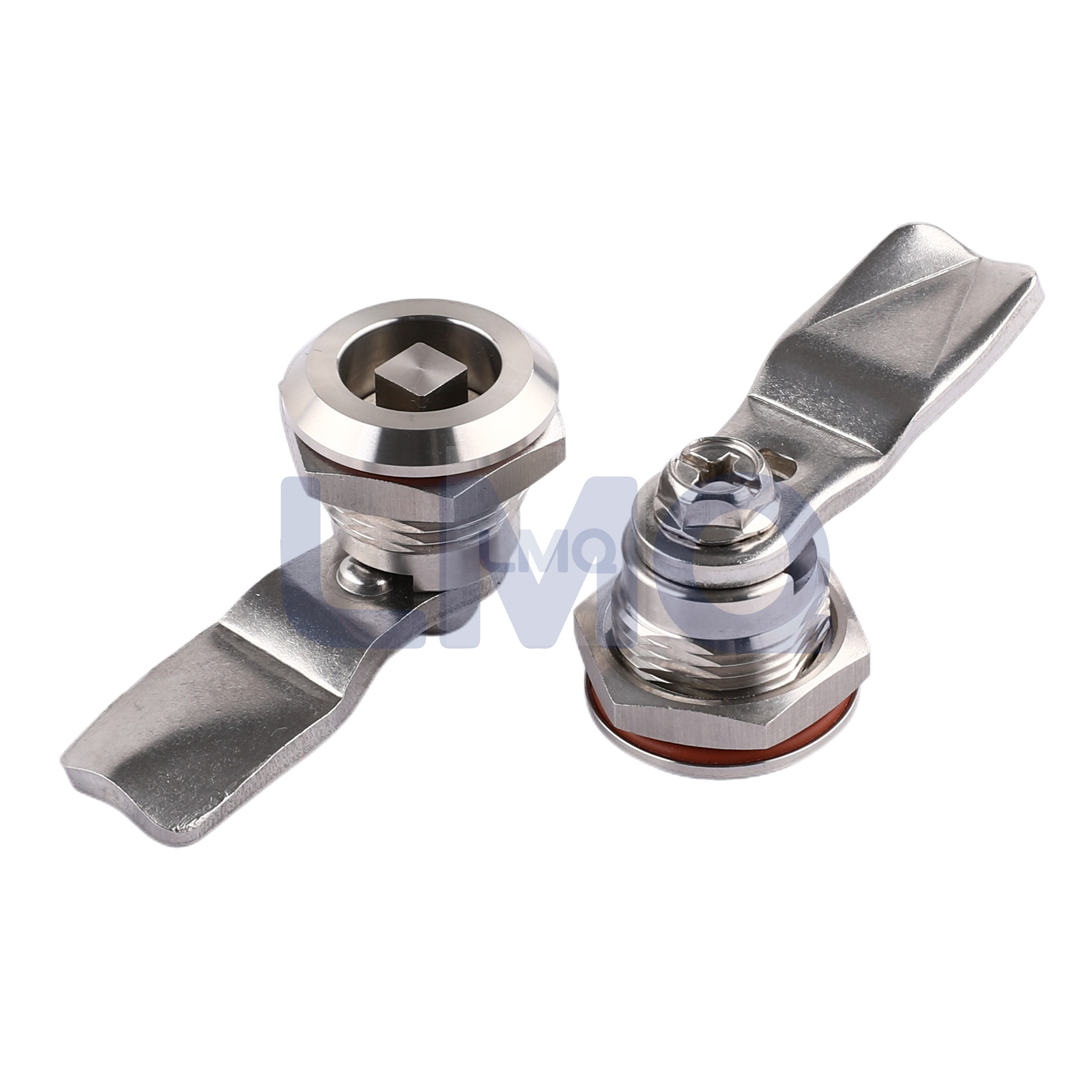

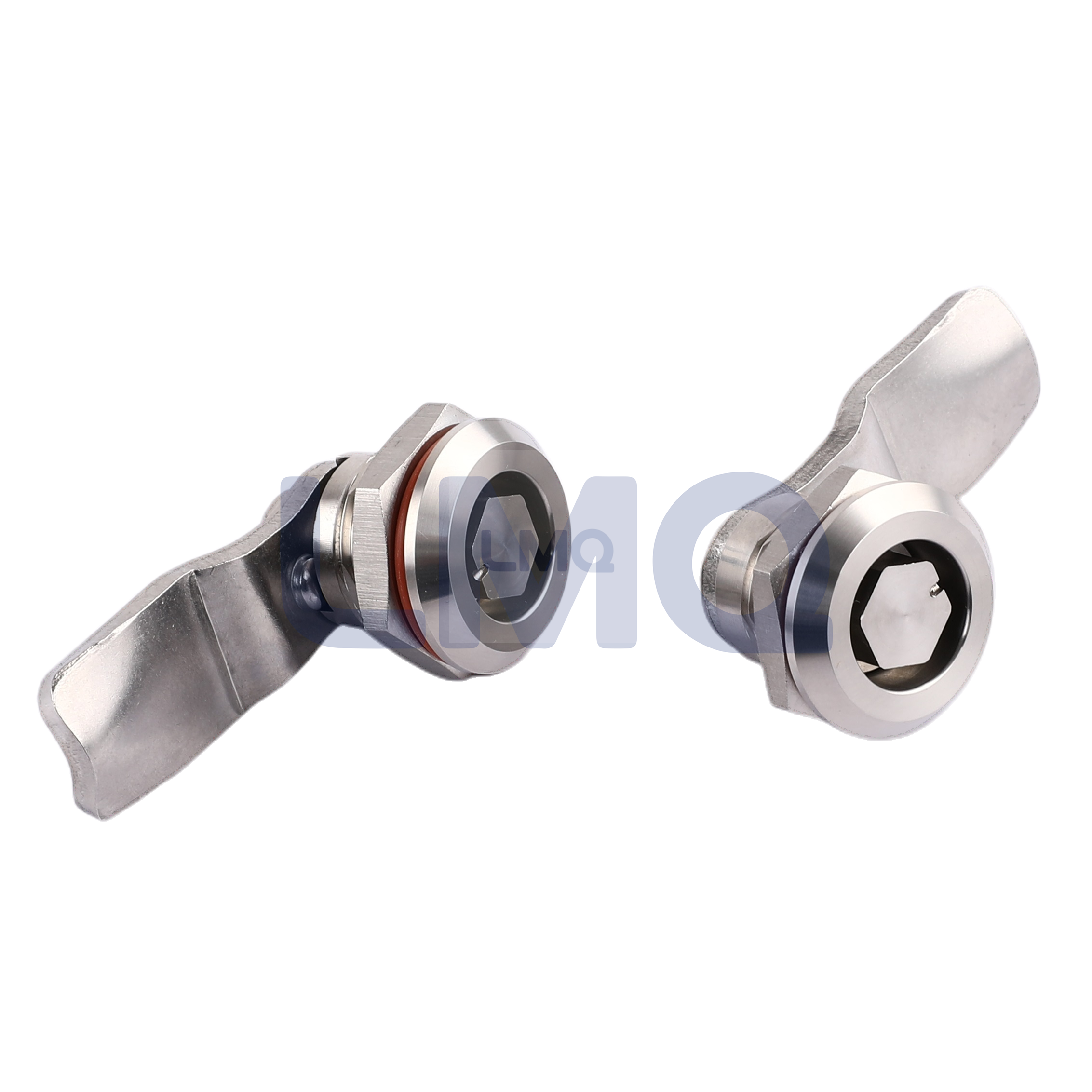

ZS01 Quarter Turn Lock, Stainless Steel Cabinet Lock, AISI304 AISI316

Application: Electrical cabinets and enclosures; Industrial cabinets; Mechanical engineering & equipment; Tool boxes; ATM & Vending machine; Railway transportation; Transportation, Infrastructure, and Tunnel Engineering; IT & Network enclosure; Food production, medical device manufacturing, etc.
Availability:
Quantity:
  • ZS01

  • LMQ

  • 830140

Specifications

ZS01

Description

Stainless Steel Quarter Turn Lock ZS01 Series

Model No.

ZS01-

248-304/316

ZS01-135-304/316

ZS01-360-304/316

ZS01-

024-304/316

ZS01-

038-304/316

ZS01-013-304/316

ZS01-047-304/316

Material

AISI 304/AISI 316

Insert Type

Female square 8mm

Eastern Europe Φ13

Hexagon male 11mm

2X4 Slot

Triangular 8mm

Double Bit 3mm

Square 7mm

GH (mm)

18

18

18

18

18

18

18

H

Based on the customer's request.  Cam size is optional.

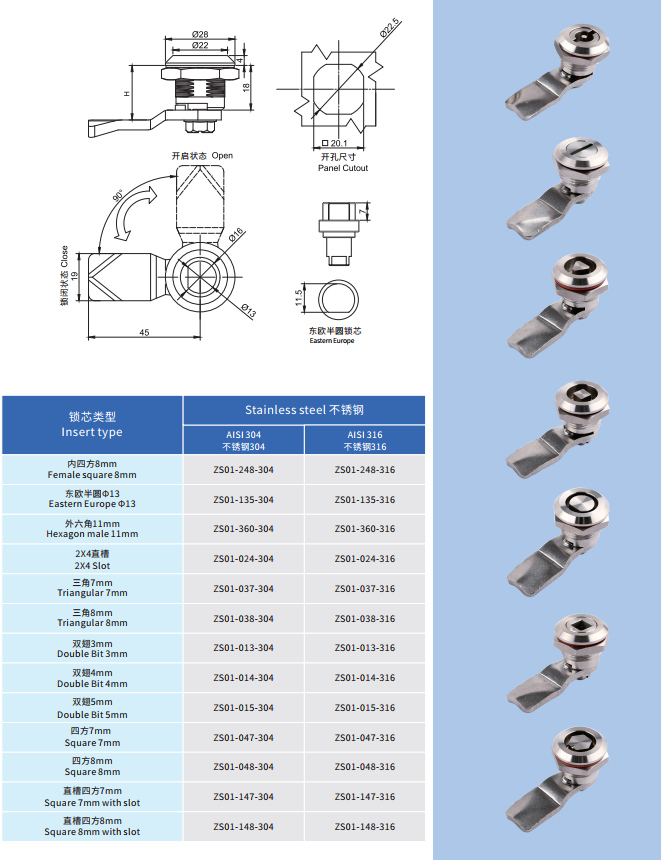

Drawing

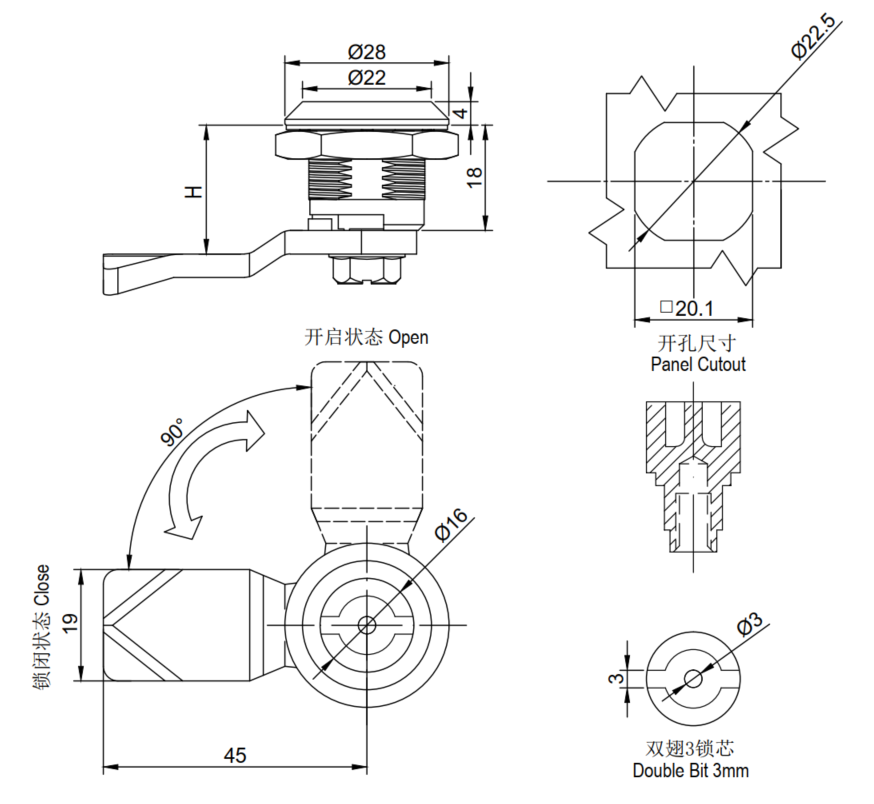

double bit quarter turn lock

Notes: Insert type is optional.
