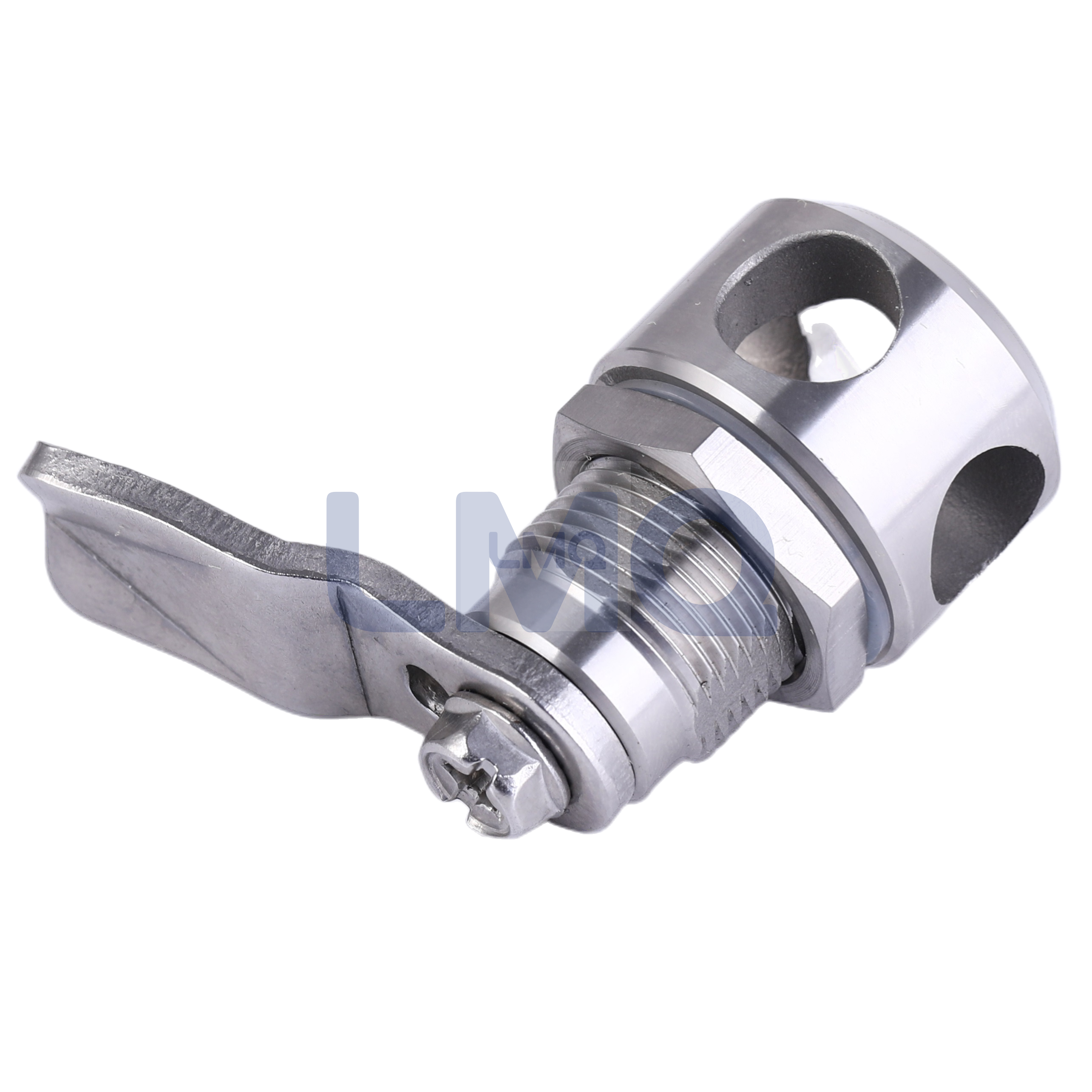

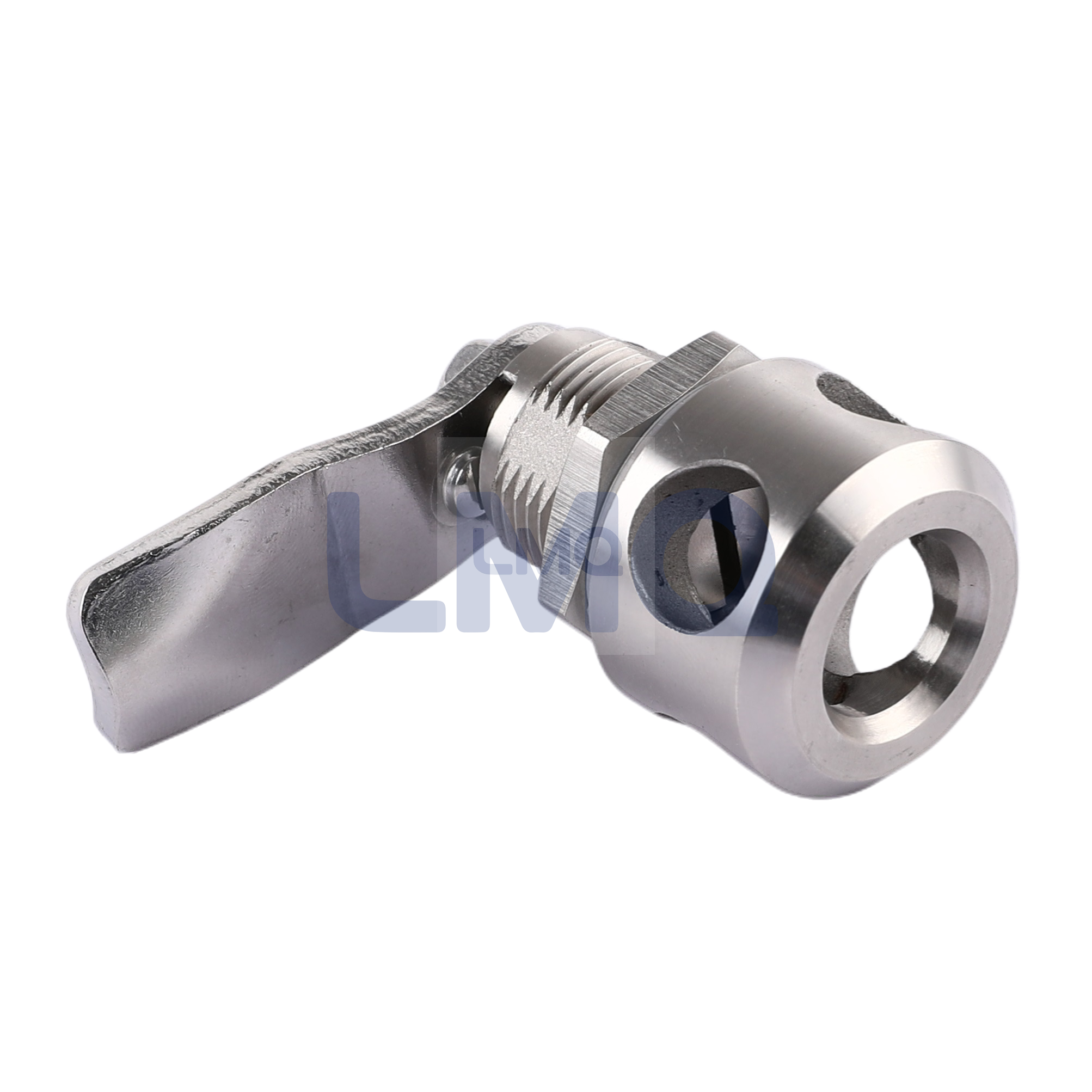

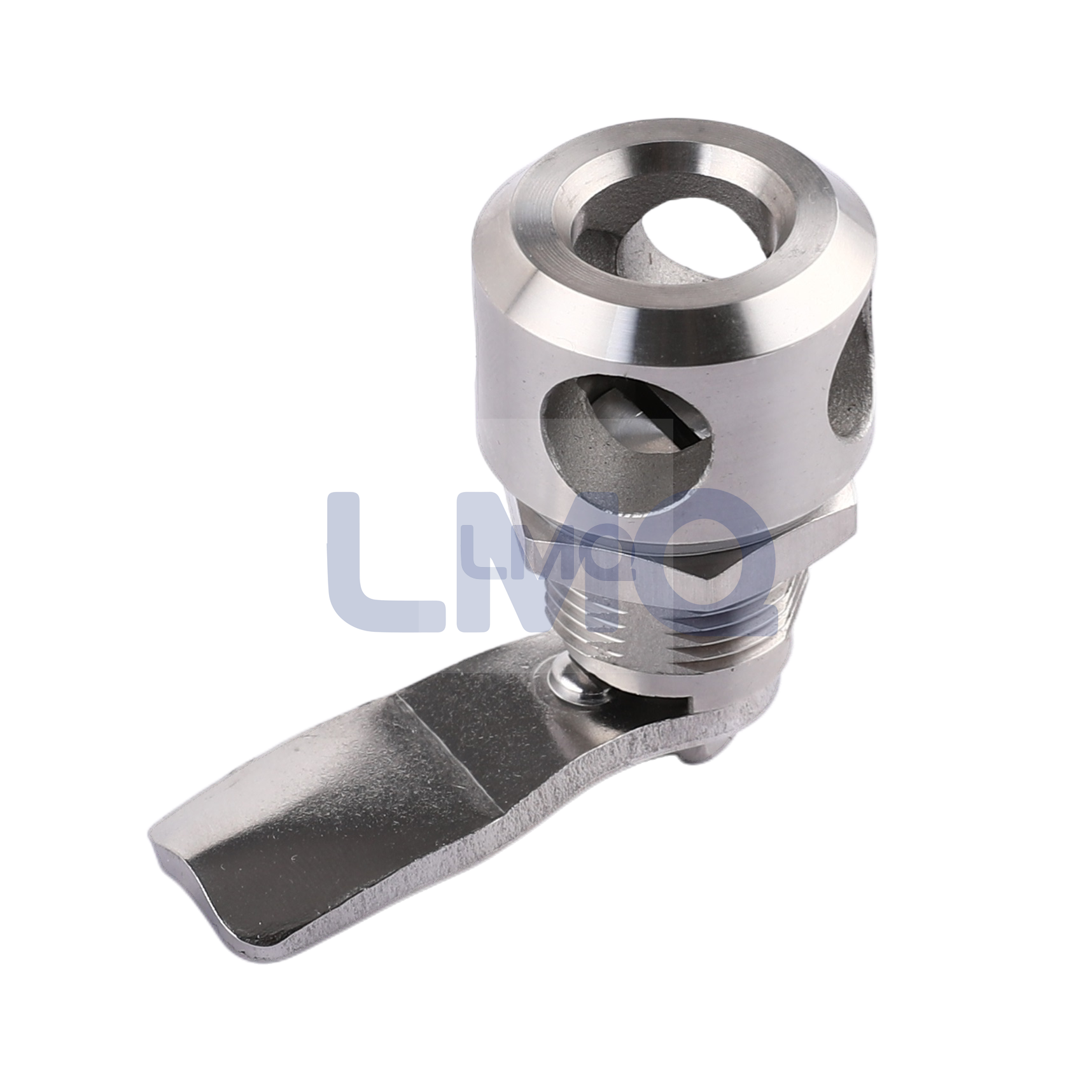

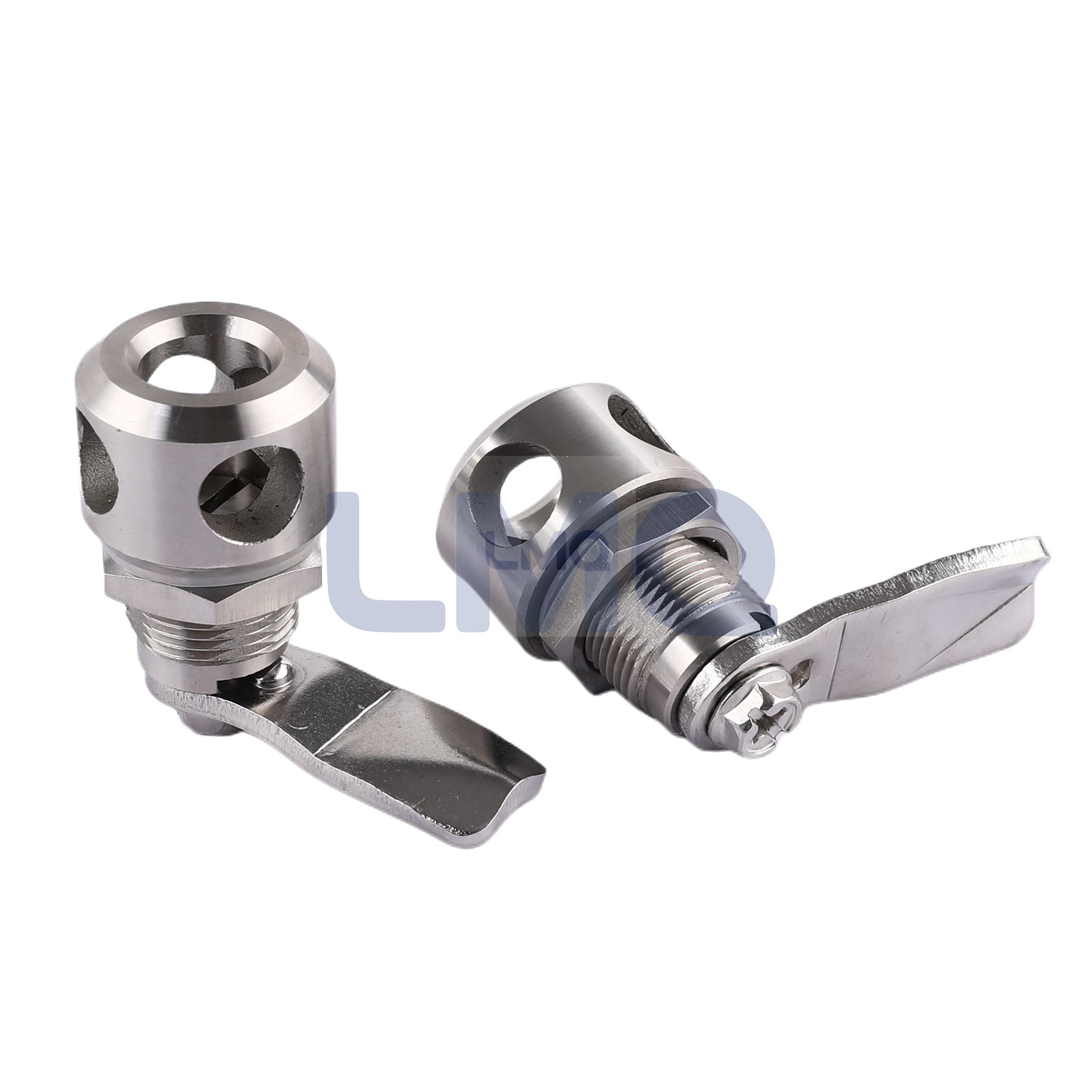

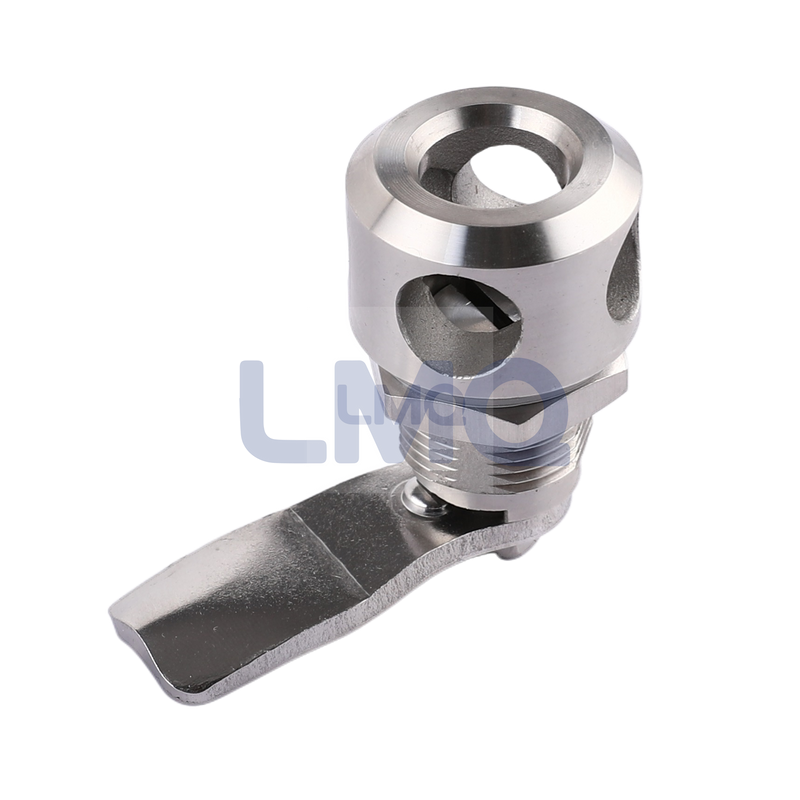

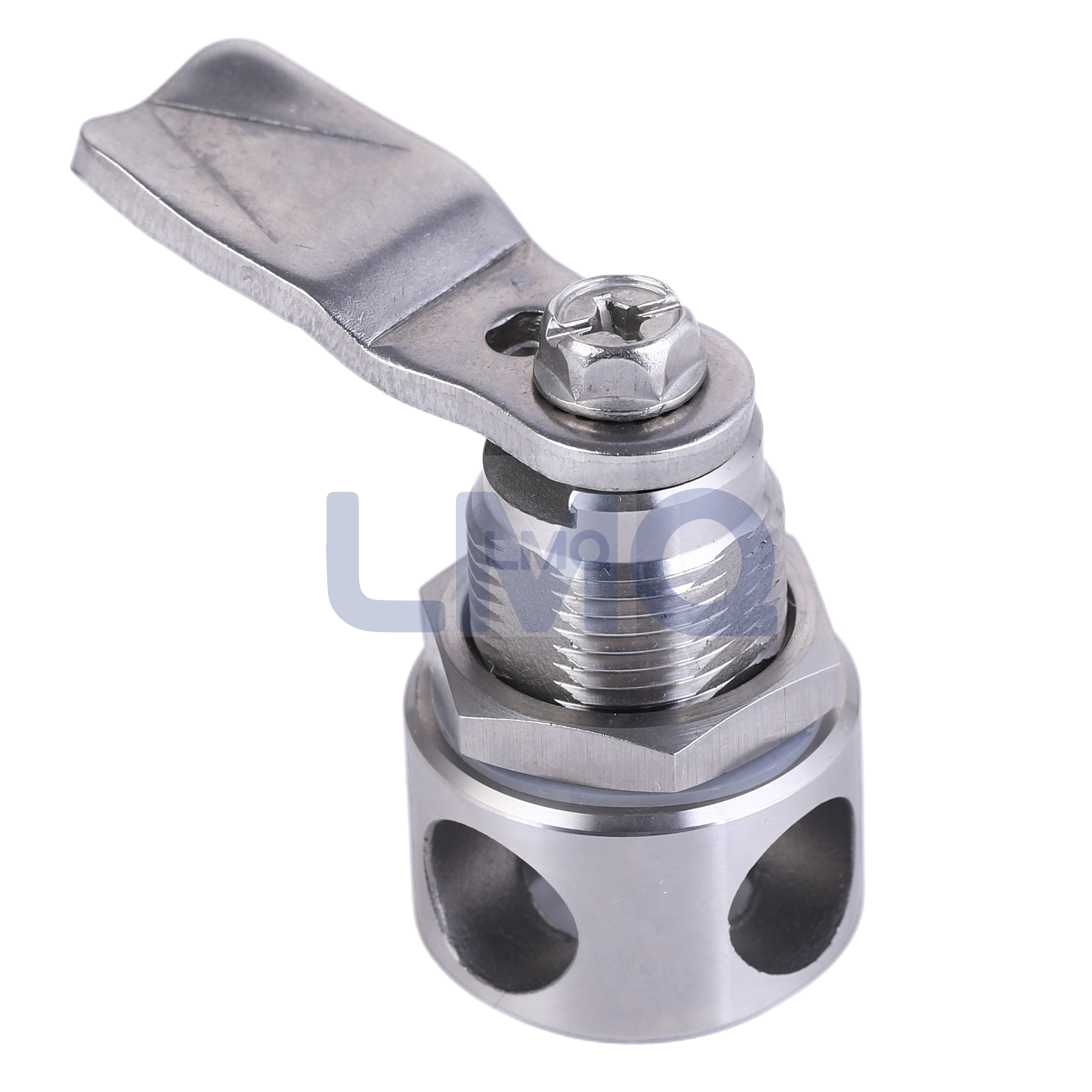

ZS07 Full Stainless Steel Quarter-Turn Lock, Housing with 4 Padlock Holes, AISI316

Application of ZS07 series quarter-turns: Electrical cabinets and enclosures; Industrial cabinets; Mechanical engineering & equipment; Tool boxes; ATM & Vending machine; Railway transportation; Transportation, Infrastructure, and Tunnel Engineering; IT & Network enclosure; Food production, medical device manufacturing, etc.
Availability:
Quantity:
  • ZS07

  • LMQ

  • 830140

Specifications

Description

Full Stainless Steel Quarter-Turn Lock, Housing with 4 Padlock Holes

Model No.

ZS07-047-316

ZS07-048-316

ZS07-037-316

ZS07-038-316

Material

AISI 316 or 304

Surface Finish

Polishing

Insert Type

Square 7mm

Square 8mm

Triangular 7mm

Triangular 8mm

GH

20

20

20

20

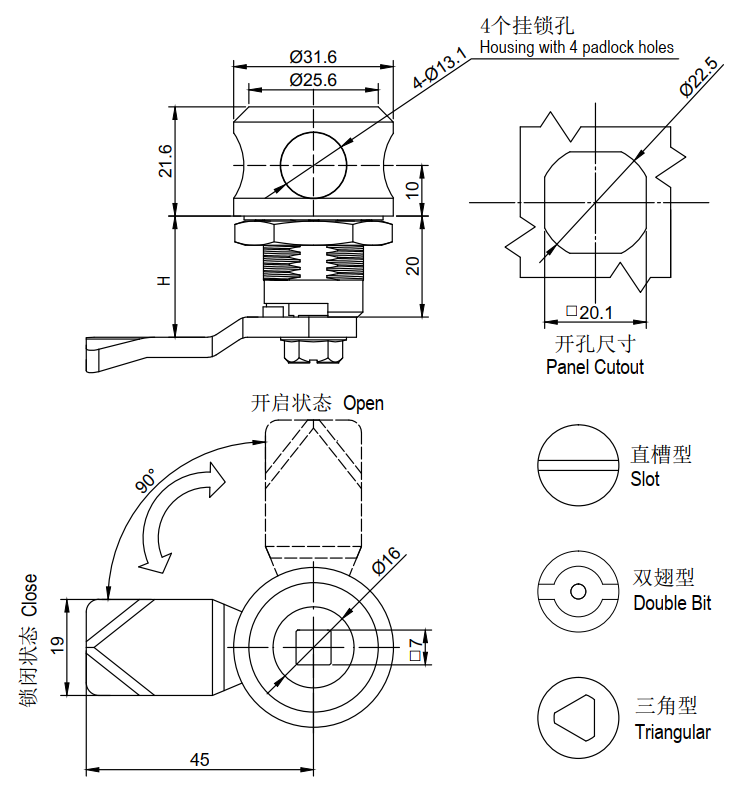

Drawing

ZS07

Notes: Insert type is optional.

The Users

locks and hinges

FAQ

1. Q: What is your MOQ?
    A: Usually 100 pcs. For orders that less than 100 pcs, please discuss with us.

2. Q: Can you provide CAD drawings?
    A: Yes, CAD drawings are available upon customers' requirements.


3. Q: Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


4. Q: Can you provide free samples to test quality?
    A: Yes, we supply free samples, but shipment cost and mold fee (if any) will be by the customer.


5. Q: How many days does it take for a customized product sample?
     A: Usually 10 days to finish new tooling and 5 days to finish new sample.


6. Q: Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.


7. Q: Are you a factory or trading company?
     A: Integrating production and trade - verified by TÜV Rheinland.
 LMQ(Laimeiqi) is a direct factory of industrial hardware and relative accessories with nearly 12 years experience. Ingesheng  is a trading company that 100% owned by LMQ, established in 2021, for providing our customers completer product lines.
